It’s got you covered – all day & all night.

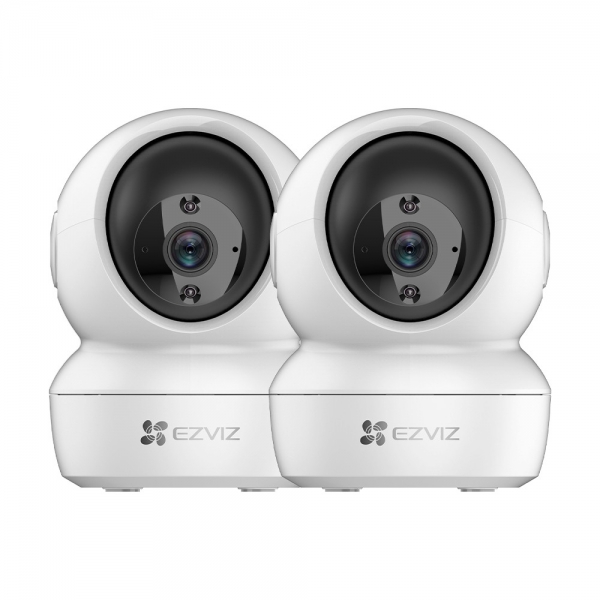

C6N
Smart Tracking
Two-way Talk
View from Anywhere
Wi-Fi 2.4 GHz
MicroSD Slot (up to 256 GB)
1080p
Smart Night Vision with Smart IR (up to 10m / 33ft.)
Motorized Pan and Tilt 360° Visual Coverage
Sleep Mode for Privacy Protection
Motion Detection
The C6N from EZVIZ comes equipped with a Smart IR function, which uses advanced infrared (IR) lighting to capture more details in dim light. With its 360-degree field of view and smart tracking function, you won’t need to worry about missing a thing.
Smart Wi-Fi Pan & Tilt Camera
With Smart IR
Without Smart IR
With Smart IR, the intensity of the infrared LEDs automatically adjusts to prevent overexposure in night vision mode, so you will get more details of the object or person captured at night.
Smart night vision with Smart IR.
Zero blind spots.
Keep tabs on every corner with just one C6N. Its expansive 360-degree field-of-view ensures full coverage, so you don’t miss a thing.
Vertical rotation 55°
Horizontal rotation 340°
Communication anytime.
Talk to your loved ones and deter unwelcome strangers – all by using the C6N’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be.
When it detects a moving object, the C6N is smart enough to automatically track its motion while alerting you with an image in real-time.
Smart tracking.
Protects your privacy.
Want a bit more privacy? With one tap of the EZVIZ App on your mobile device, you can enable C6N’s sleep mode, giving you privacy when you need it.
Multiple Storage Solutions
Save your recordings with flexible and secured solutions. The C6N comes with a built-in MicroSD card slot that can store up to 256 GB of recorded footage. You can also save your images to EZVIZ Cloud* for additional back-up.
Supports MicroSD Card
Encrypted Cloud Storage*
*Cloud storage service is only available in certain markets. Please verify the availability before making any purchase.
Security at your fingertips.
With the EZVIZ App, you can capture, save, protect, and share what’s valuable to you.
Live View
Audio Reception
Instant Alerts
Video History
Up to 8x Zoom
Smart Home Enabled
EZVIZ app interface images are for illustrative purposes only.
| Model Parameters | ||
|---|---|---|
| Model | CS-C6N-A0-1C2WFR | |
| Camera | ||
| Image Sensor | 1/4" Progressive Scan CMOS | |
| Shutter Speed | Self-adaptive shutter | |
| Lens | 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical | |
| Lens Mount | M12 | |
| Day & Night | IR-cut filter with auto-switching | |
| DNR | 3D DNR | |
| WDR | Digital WDR | |
| Compression | ||
| Video Compression | H.264 | |
| Video Bit Rate | Full HD, HD, Standard. Adaptive bit rate. | |
| Image | ||
| Max. Resolution | 1920 × 1080 | |
| Frame Rate | Max. 15fps; Self-adaptive during network transmission | |
| Network | ||
| Smart Alarm | Motion detection | |
| Wi-Fi Pairing | AP Pairing | |
| Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol | |
| Interface | ||
| Storage | MicroSD card slot (Max. 256 GB) | |
| Power | Micro USB | |
| Wired Network | RJ45 X 1 (10M/100M self-adaptive Ethernet port) | |
| Wi-Fi | ||
| Standard | IEEE802.11 b/g/n | |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz | |
| Channel Bandwidth | Supports 20MHz | |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Transmission Rate | 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps | |
| General | ||
| Power Supply | DC 5V/1A | |
| Power Consumption | 5W max | |
| IR Range | MAX. 10m (32.81 fts) | |
| Dimensions | 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”) | |
| Packaging Dimensions | 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”) | |
| Bare Weight | 218g (0.48lb) | |
| Packaging Contents | ||
| Packaging Contents | C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide | |
| Operating Environment | ||
| Temperature | -10° C to 45° C (14° F to 113° F) | |
| Humidity | 95% or less (non-condensing) | |
| Certifications | ||
| Certifications | FCC / UL / CE / WEEE / REACH / RoHS | |
