EZVIZ 1080p Wired Kits

Detail
Specs
Support

Everyday 1080p

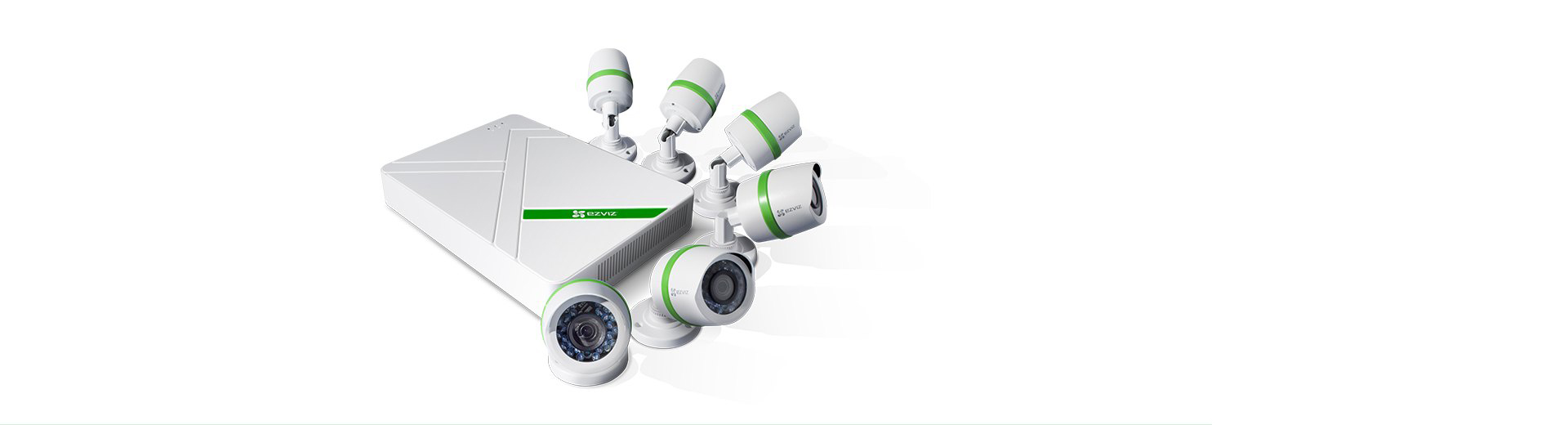

1080p Wired Kits

View. Control. Protect

Wide-Angle View

IP66 Weatherproof Rating

Night Vision

DVR and Remote Access

Advanced Security and Encryption

Multi-layer security and end-to-end video encryption protect your video and data from unauthorized access.

Control from anywhere

View live video and control your security system 24/7 from a smartphone or tablet with the EZVIZ app

Easy setup

Have your system up and running in no time with easy-to-follow instructions and the EZVIZ app.

Real-time HD 1080P

Keep an eye on what's happening anytime on your smartphone, tablet, or computer with live-streaming HD 1080p video

Expand And Upgrade

EZVIZ security cameras connect to existing BNC coaxial cables so you can quickly add cameras to your system and upgrade to the lastest security features

Durable, Waterproof Camera with Night Vision

Enjoy clear HD 1080p video at night up to 100 feet. EZVIZ cameras withstand harsh elements such as wind, rain, and snow in tempatures ranging from -40 degree to 140 degree.

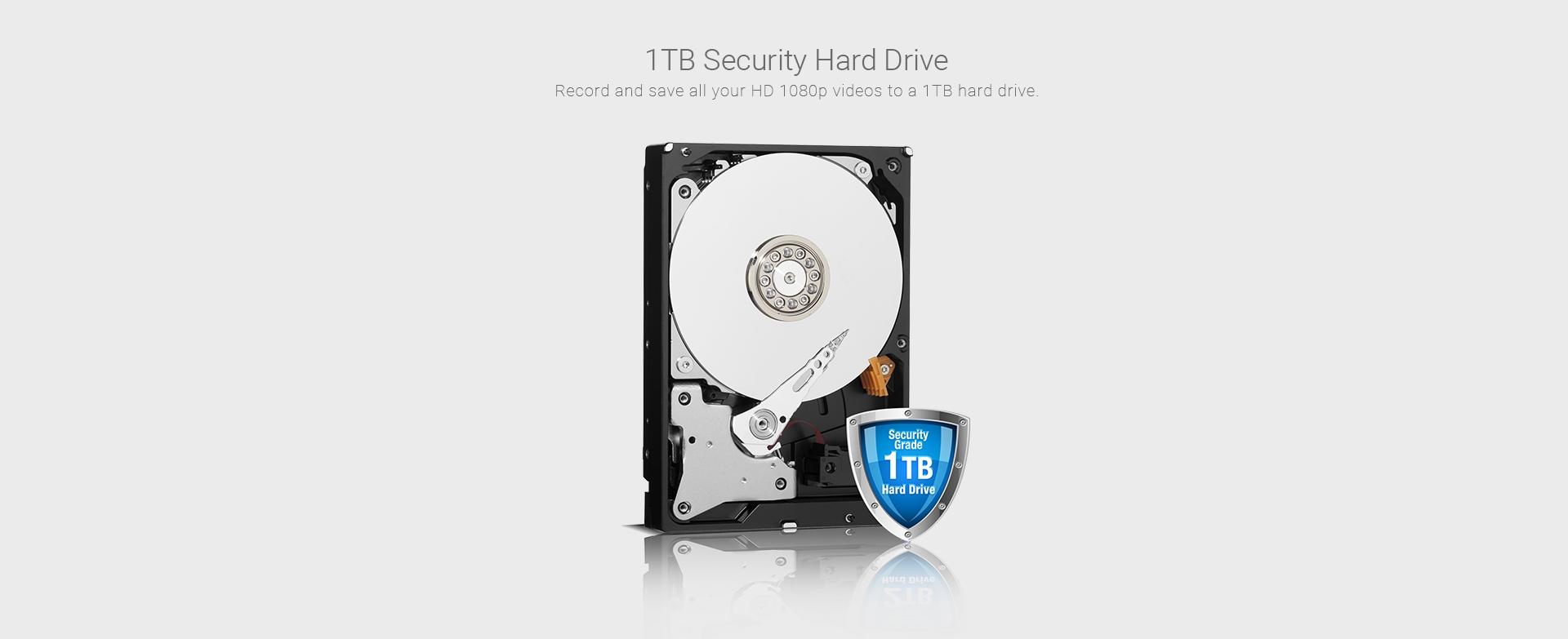

1 TB Security Hard Drive

Record and save all your HD 1080p videos to 1TB hard drive.

Everyday 1080p

View. Control. Protect.

Camera	Model		CS-C3T-2PR
	Model		1080p Weatherproof Analog Bullet Camera
	Image Sensor		1/3" Progressive Scan CMOS
	Signal System		NTSC
	Effective Pixels		1930(H) x 1088(V)
	Min. Illumination		0.01 Lux @(F1.2, AGC ON), 0 lux with IR
	Shutter Time		1/30 s to 1/50,000 s
	Lens		2.8mm
	Lens		View Angle: 91.3°(horizontal), 49°(vertical), 107.5°(diagonal)
	Lens Mount		M12
	Angle Adjustment		Pan: 0 - 360°, Tilt: 0 -90°, Rotation: 0 - 360°
	Day & Night		ICR
	Video Frame Rate		1080p@30fps
	HD Video Output		1 HD output
	S/N Ratio		More than 52dB
	General	Working Temperature/ Humidity	-40°F to 140°F (-40°C to 60°C)
		Humidity	90% or less (non-condensing)
		Power Supply	12 VDC ± 15%
		Power Consumption	Maximum 4W
		Weather Proof Ratings	IP66
		IR Range	Up to 100ft (30m) night vision in ambient light; up to 65ft (20m) in total darkness
		Dimension	Φ2.75 × 6.46 in (Φ70 × 164.2 mm)
		Weight	183.7 g (0.405 lbs)
DVR	Model			CS-X5-104T	CS-X5-108T(P)	CS-X5-116T
	Video/Audio input		Video compression	H.264
			Analog and HD-TVI video input	4 channels	8 channels	16 channels
			Analog and HD-TVI video input	BNC interface (1.0Vp-p, 75 Ω)
			Supported camera types	720P/30, 1080P/30, CVBS
			Audio compression	G.711u
			Audio input / Two-way audio in	1-ch, RCA (2.0 Vp-p, 1 KΩ)
	Video/Audio out-put		HDMI output	1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
			VGA output	1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
			Encoding resolution	Main stream: 1080P(15FPS) / 720P / 4CIF
			Encoding resolution	Sub-stream: 4CIF/VGA/QVGA
			Frame rate	Main stream: 1/16 fps ~ 15 fps@1080P
			Frame rate	Sub-stream: 1/16 fps ~ 12 fps@1080P
			Video bitrate	32 Kbps-4 Mbps		32 Kbps-6 Mbps
			Audio output	1-ch, RCA (Linear, 1KΩ)
			Audio bitrate	64 Kbps
			Dual-stream	Support
			Stream type	Video, Video & Audio
			Synchronous playback	4 channels	6channels	16 channels
			Playback resolution	1080P / 720P
	Hard disk		Capacity	Built-in 1-TB HDD	Built-in 2-TB HDD	Built-in 3-TB HDD
	External interface		Network interface	1; 10M / 100M self-adaptive Ethernet interface
			Serial interface	1; standard RS-485 serial interface, half-duplex
			USB port	2 × USB2.0
	General		Power supply	12V DC
			Consumption	≤ 20W	≤ 25W	≤ 35W
			Working temperature	14 °F ~ 131 °F (-10 °C ~+55 °C)
			Working humidity	10% ~ 90%
			Dimensions (W × D × H)	7.9 × 7.9 × 1.8 inch (200 × 200 × 45mm)	11 × 8.3 × 1.8in (280 × 210 × 45mm)	380 × 290 × 48mm(15.0 × 11.4 × 1.9 inch)
			Weight	2.2 lb (1kg)	3.6Ib (1.6kg)	5.5 lb (2.5 kg)
