Everyday 3MP

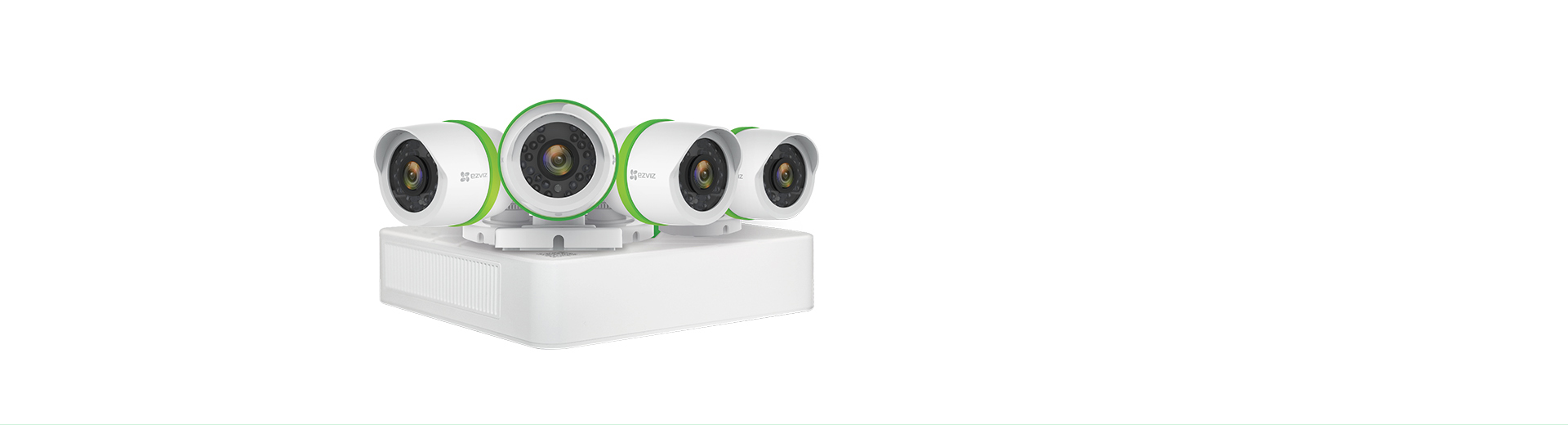

3MP Wired Kits

View. Control. Protect

Wide-Angle View
IP66 Weatherproof Rating
Night Vision
DVR and Remote Access

Real-Time, High-Definition Video
High-definition wired kits deliver clear video and sharp details even when people, animals, and objects are far away.
Keep an eye on your family and home while providing an extra level of security anywhere you need it.
Control From Anywhere
View live video and control your security system 24/7 from a smartphone or tablet with the EZVIZ app.
You can also share links with friends and family so they can view your video, too.
Motion Detection Alerts
For added security, receive notifications on your smartphone whenever motion is detected.

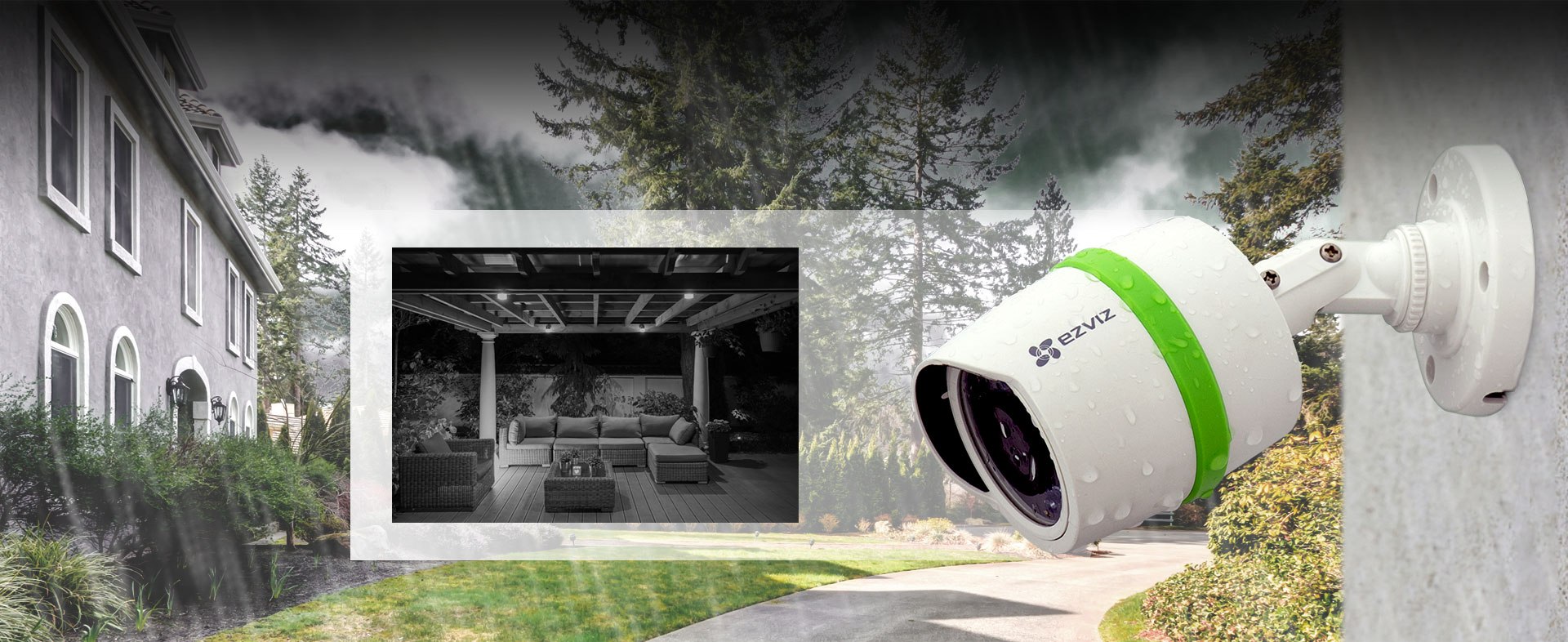

Durable, Waterproof Camera with Night Vision
Enjoy clear, HD video with up to 100 feet of night vision. EZVIZ cameras withstand harsh elements
such as wind, rain, and snow in temperatures ranging from -40°F to 140°F (-40°C to 60°C).
Easy Setup
Have your system up and running in no time with
easy-to-follow-instructions and the EZVIZ app.

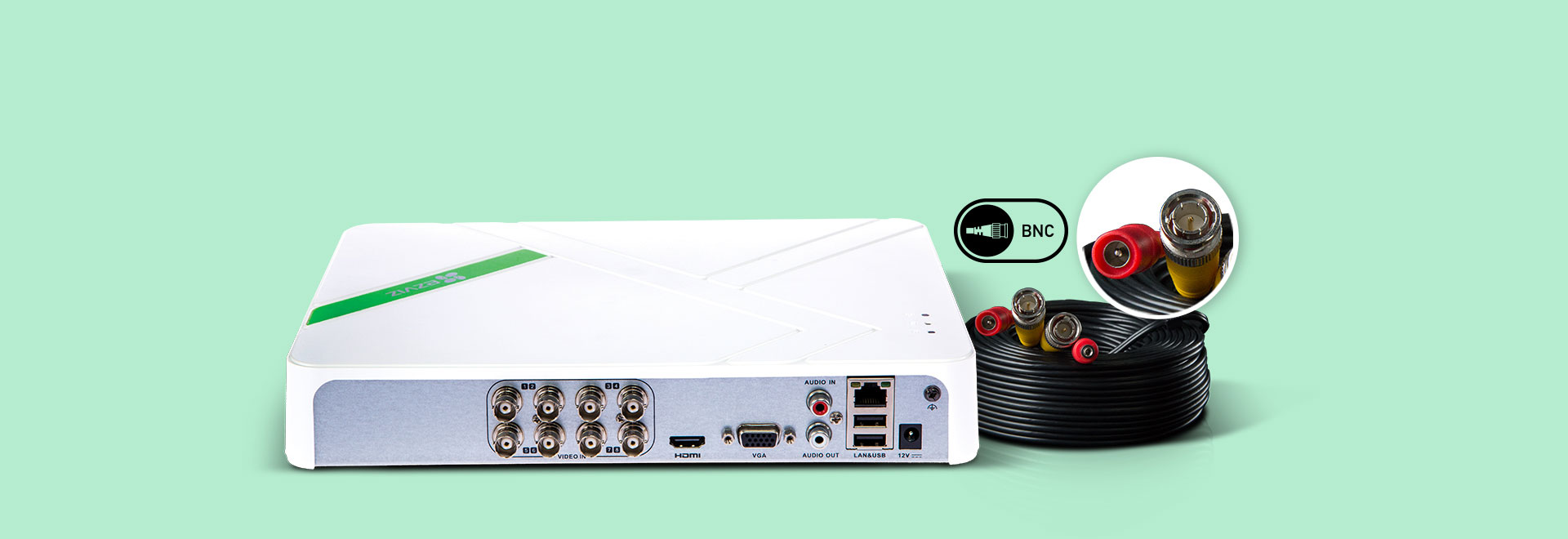

Expand and Upgrade
EZVIZ security cameras connect to existing BNC coaxial cables so you can quickly add
cameras to your system and upgrade to the latest security features.
Security-Grade Hard Drive
EZVIZ wired kits come with a security-grade hard drive for protecting your stored videos.
Advanced Security and Encryption
Multilayer security and end-to-end video encyption protect your video and data from unauthorized access.

Everyday 3MP

View. Control. Protect.

Camera	Model		CS-CA110 (A1-43R)
	Model		3MP Weatherproof Analog Bullet Camera
	Image Sensor		1/3" Progressive Scan CMOS
	Signal System		NTSC
	Effective Pixels		2048 x 1536
	Min. Illumination		0.01 Lux @(F1.2, AGC ON), 0 lux with IR
	Shutter Time		1/30 s to 1/50,000 s
	Lens		3.6 m
	Lens		View Angle: 64.8° (horizontal), 51.2° (vertical), 84.8° (diagonal
	Lens Mount		M12
	Angle Adjustment		Pan: 0 - 360°, Tilt: 0 -90°, Rotation: 0 - 360°
	Day & Night		IR Cut Filter
	Video Frame Rate		1920 x 1536 @18fps
	HD Video Output		1 HD output
	S/N Ratio		> 62dB
	General	Working Temperature/ Humidity	-40°F to 140°F (-40°C to 60°C)
		Humidity	90% or less (non-condensing)
		Power Supply	12 VDC ± 15%
		Power Consumption	Maximum 5W
		Weather Proof Ratings	IP66
		IR Range	Up to 100ft (30m) night vision in ambient light; up to 65ft (20m) in total darkness
		Dimension	Φ2.75 × 6.46 in (Φ70 × 164.2 mm)
		Weight	0.184kg (0.406 lbs
DVR	Model			CS-VR104D (A1-13HV	CS-VR108D (A1-13HV)	CS-VR116D (A1-13HV)
	Video/Audio input		Video compression	H.264
			Analog and HD-TVI video input	4 channels	8 channels	16 channels
			Analog and HD-TVI video input	BNC interface (1.0Vp-p, 75 Ω)
			Supported camera types	Up to 3MP
			Audio compression	G.711u
			Audio input / Two-way audio in	1-ch, RCA (2.0 Vp-p, 1 KΩ)
	Video/Audio out-put		HDMI output	1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
			VGA output	HDMI: 4K (3840 x 2160)/30Hz,1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
			Encoding resolution	Main stream: 3MP/1080P/720P
			Encoding resolution	Sub-stream: WD1/4CIF/CIF
			Frame rate	Main stream: 1/16 fps ~ 12fp
			Frame rate	Sub-stream: 1/16 fps ~ 12fp
			Video bitrate	32 Kbps-4 Mbps
			Audio output	1-ch, RCA (Linear, 1KΩ)
			Audio bitrate	64 Kbps
			Dual-stream	Support
			Stream type	Video, Video & Audio
			Synchronous playback	1 channels	2channels	4 channels
			Playback resolution	3MP/1080P/720P
	Hard disk		Capacity	Built-in 1-TB HDD	Built-in 1TB/ 2TB HDD	Built-in 2TB/ 3TB HDD
	External interface		Network interface	1; 10M / 100M self-adaptive Ethernet interface
			Serial interface	1; 10M/100M/1000M self-adaptive Ethernet interface
			USB port	2 × USB2.0
	General		Power supply	12V DC
			Consumption	≤ 25W
			Working temperature	14 °F ~ 131 °F (-10 °C ~+55 °C)
			Working humidity	10% ~ 90%
			Dimensions (W × D × H)	200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)		285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
			Weight	2.14lb (0.97kg)	2.54lb (1.15kg)	3.40lb (1.54 kg)
