IP 4MP

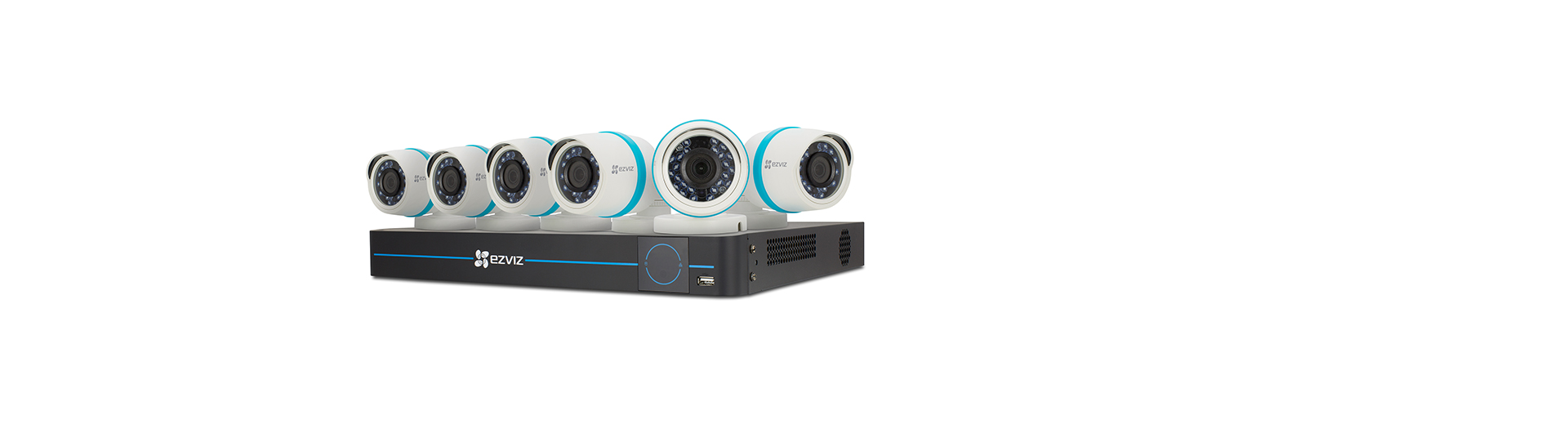

4MP IP Wired Kits

Easily Connect and Protect

Wide-Angle View
IP66 Weatherproof Rating
Night Vision
NVR and Remote Access with EZVIZ App

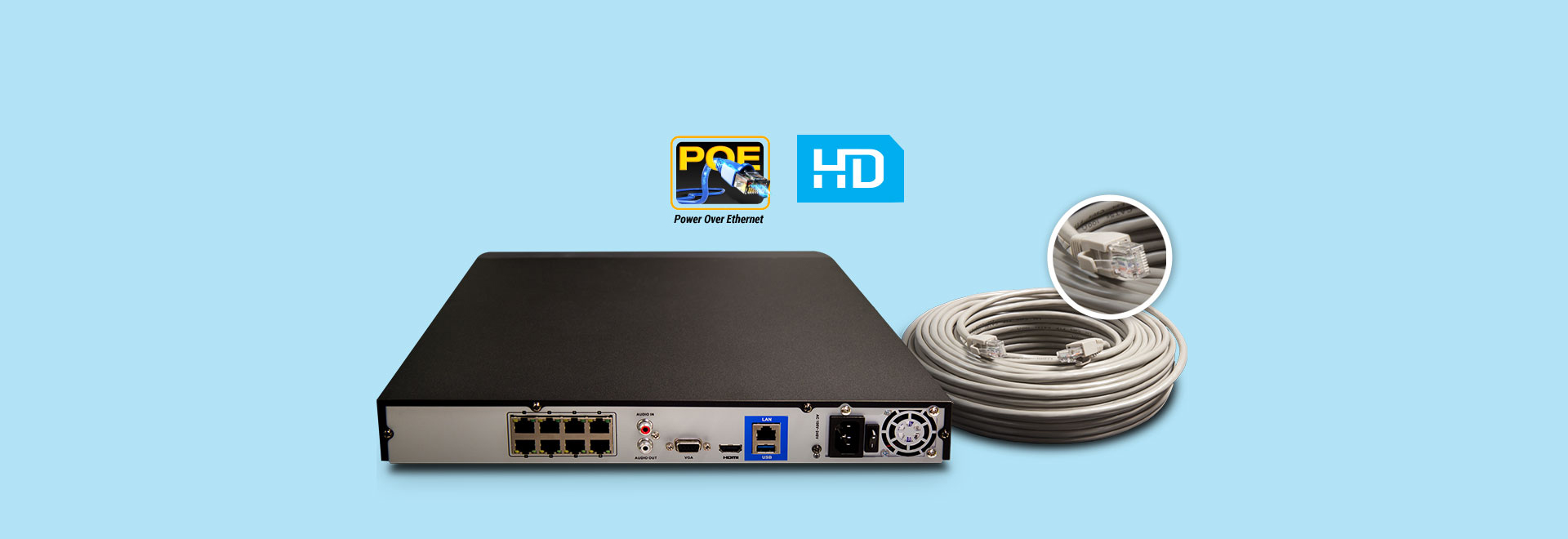

Easy Setup with PoE
Setup is easy with PoE connectivity. All you need is one Ethernet cable to power and connect each camera.
Real-Time, High-Definition Video
High-definition wired kits deliver clear video and sharp details even when people, animals, and objects are far away.
Keep an eye on your family and home while providing an extra level of security anywhere you need it.
Security At Your Fingers
Manage your security system and view video on your smartphone with the EZVIZ app.
Customizable Motion Detection Alerts
For added security, receive notifications on your smartphone whenever motion is detected.

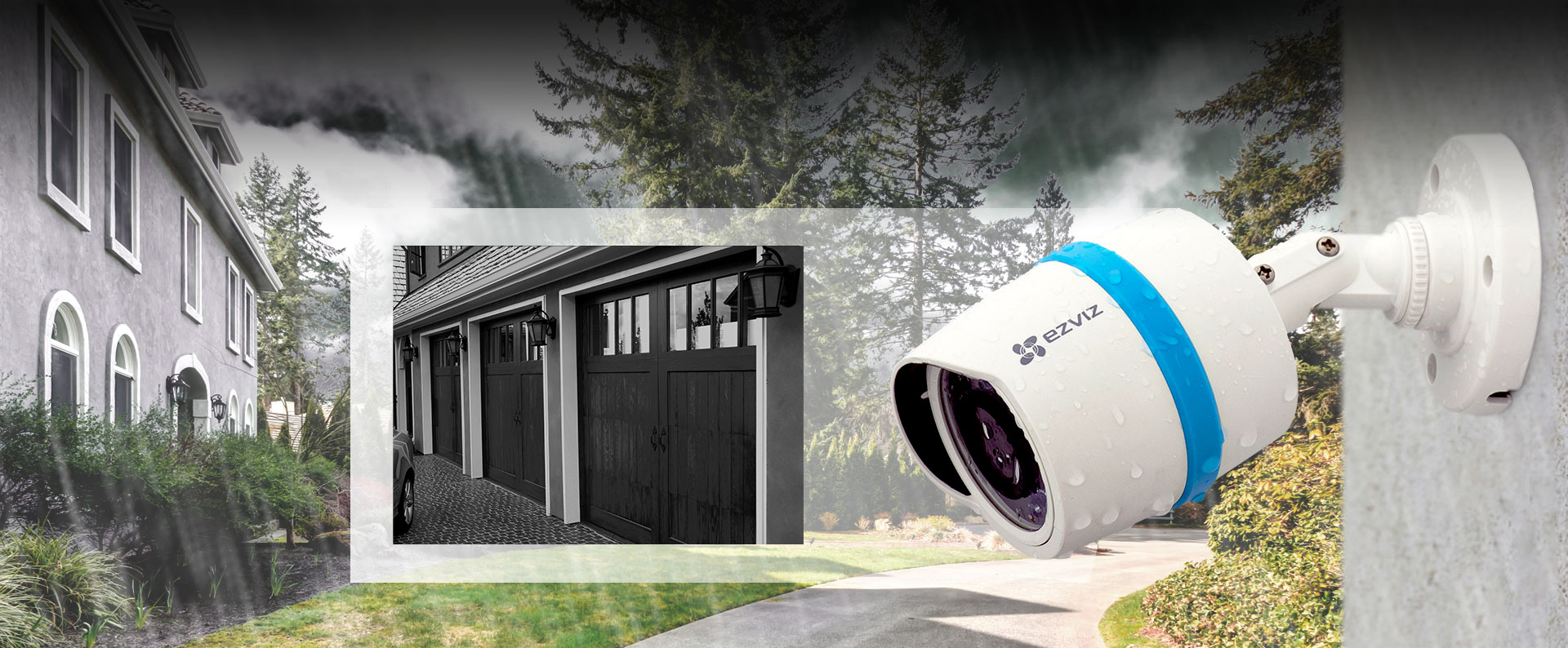

Durable, Waterproof Camera with Night Vision
Enjoy clear, HD video with up to 100 feet of night vision. EZVIZ cameras withstand harsh elements
such as wind, rain, and snow in temperatures ranging from -22°F to 140°F (-30°C to 60°C).
Easy Setup
Have your system up and running in no
time with easy-to-follow-instructions and
the EZVIZ app.
Advanced Security and Encryption
Multilayer security and end-to-end video encyption protect your video and data from unauthorized access.

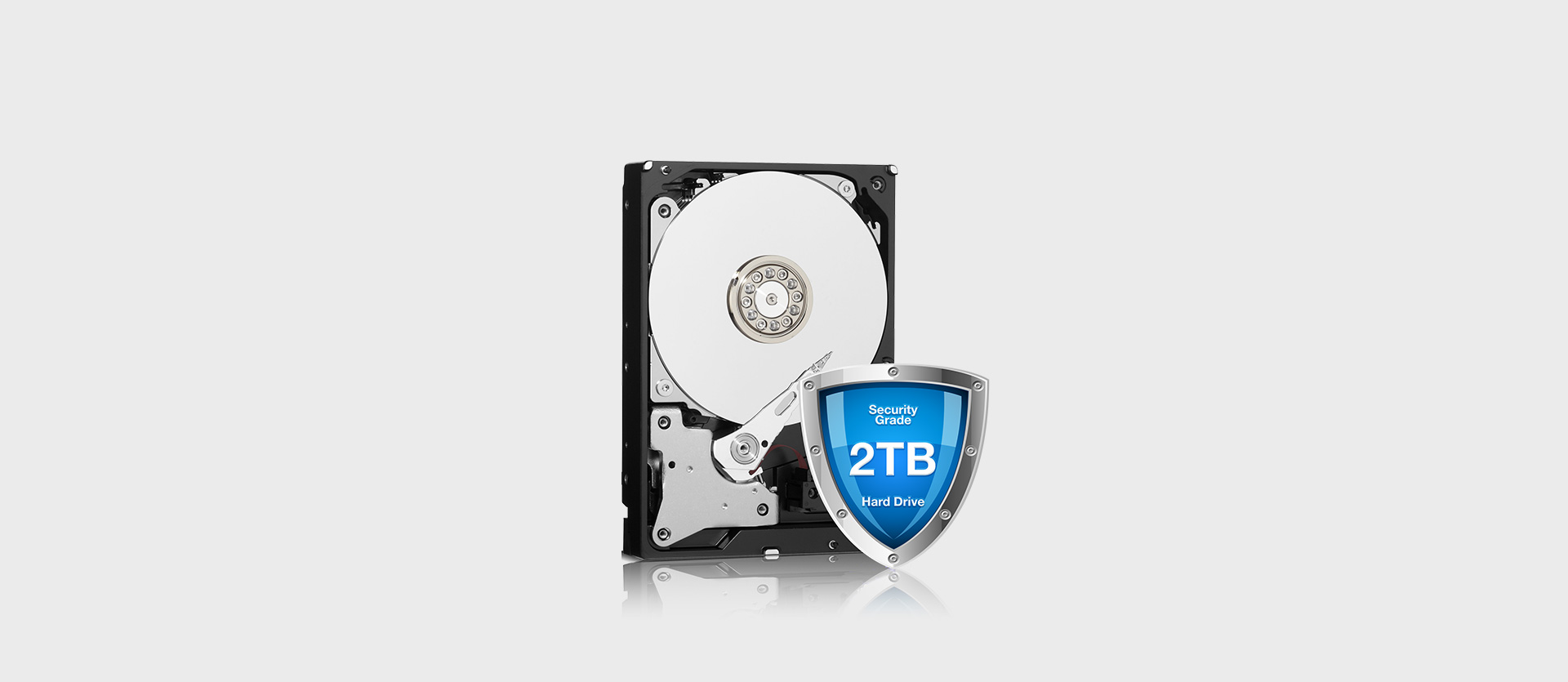

Security-Grade Hard Drive
EZVIZ wired kits come with a security-grade hard drive for protecting your stored videos.

IP 4MP

View. Control. Protect

Camera	Model	CS-CV110 (A1-54R)
	Model	4MP Weatherproof PoE Bullet IP Camera
	Image Sensor		Progressive Scan CMOS
	Sginal System		NTSC
	Effective Pixels		2688(H) x 1520 (V)
	Min. Illumination		0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
	Shutter Time		1/3 s to 1/100,000 s
	Lens		4mm
	Lens		View Angle: 83° (horizontal), 44.7°(vertical), 97.6°(diagonal)
	Lens Mount		M12
	Angle Adjustment		Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°
	Day & Night		IR cut filter with auto switch
	Frame Rate		4MP @20fps
	General	Working Temperature/ Humidity	-22°F to 140°F (-30°C to 60°C)
		Working Temperature/ Humidity	Humidity 90% or less (non-condensing)
		Power Supply	802.3af
		Power Consumption	Maximum 4W
		Weather Proff Ratings	IP66
		IR Range	Up to 100ft (30m) night vision in ambient light; up to 65ft (20m) in total darkness
		Dimension	Φ2.75 in × 6.46 in (Φ70 × 164.2 mm)
		Weight	0.40kg (0.88 lb)
NVR	Model		CS-X4-104P	CS-X4-108P	CS-X4-116P
	Video/Audio Input	IP video input	4 channels	8 channels	16 channels
	Video/Audio Input	Audio input (reserved)	1-ch, RCA (2.0 Vp-p, 1kΩ)
	Network	Incoming bandwidth	40Mbps	80Mbps	160Mbps
	Network	Outgoing bandwidth	80Mbps	80Mbps	80Mbps
	Video/Audio Output	Recording resolution	4MP (26881520), 1080p, 720p/ VGA/4CIF/CIF/QVGA, 640360
		Frame rate	Main stream: Up to 30 fps (N)
		Frame rate	Sub-stream: Up to 30 fps (N)
		HDMI/VGA output	1920 × 1080p/60Hz,1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
		Audio output (reserved)	1-ch, RCA (Linear, 1kΩ)
	Decoding	Live view / Playback resolution	4MP (26881520), 1080p, 720p/ VGA/4CIF/CIF/QVGA, 640360
	Decoding	Capability	2-ch@ 4MP, 4-ch@1080p	3-ch@4MP, 4-ch@1080p, 8-ch@720p	4-ch@4MP, 6-ch@1080p, 12-ch@720p
	Hard disk	Capacity	Built-in 1TB/ 2TB HDD	Built-in 2TB HDD	Built-in 3TB HDD
	External interface	Network interface	1 RJ-45 10 /1000 Mbps self-adaptive Ethernet interface
	External interface	USB interface	1 × USB 2.0 and 1 × USB 3.0
	PoE	Interface	4 independent 100 Mbps PoE network interfaces	8 independent 100 Mbps PoE network interfaces	16 independent 100 Mbps PoE network interfaces
		Max. Power	50W	120W	200W
		Supported standard	802.3af and 802.3at
	General	Power supply	48V DC	100~240V AC
		Consumption (without PoE)	≤15W
		Working temperature	14 °F to 131 °F ( -10 °C ~ +55 °C)
		Working humidity	10 % ~ 90 %
		Chassis	1U chassis	380mm 1U chassis	380mm 1U chassis
		Dimensions (W × D × H)	12.4 × 9.1 × 1.8 inch (315 × 230 × 45mm)	15.0 × 12.6 × 1.9 inch (380 × 320 × 48mm)
		Weight	4.4 lb (2kg)	6.6 lb (3kg)	7.0 lb (3.2kg)
